VCS Agent Pools

Info

This feature is only available to Enterprise plan. Please check out our pricing page for more information.

By default, Spacelift communicates with your VCS provider directly. This is usually sufficient, but some users may have special requirements regarding infrastructure, security or compliance, and need to host their VCS system in a way that's only accessible internally, where Spacelift can't reach it. This is where VCS Agent Pools come into play.

A single VCS Agent Pool is a way for Spacelift to communicate with a single VCS system on your side. You run VCS Agents inside of your infrastructure and configure them with your internal VCS system endpoint. They will then connect to a gateway on our backend, and we will be able to access your VCS system through them.

On the Agent there are very conservative checks on what requests are let through and which ones are denied, with an explicit allowlist of paths that are necessary for Spacelift to work. All requests will be logged to standard output with a description about what they were used for.

Create the VCS Agent Pool

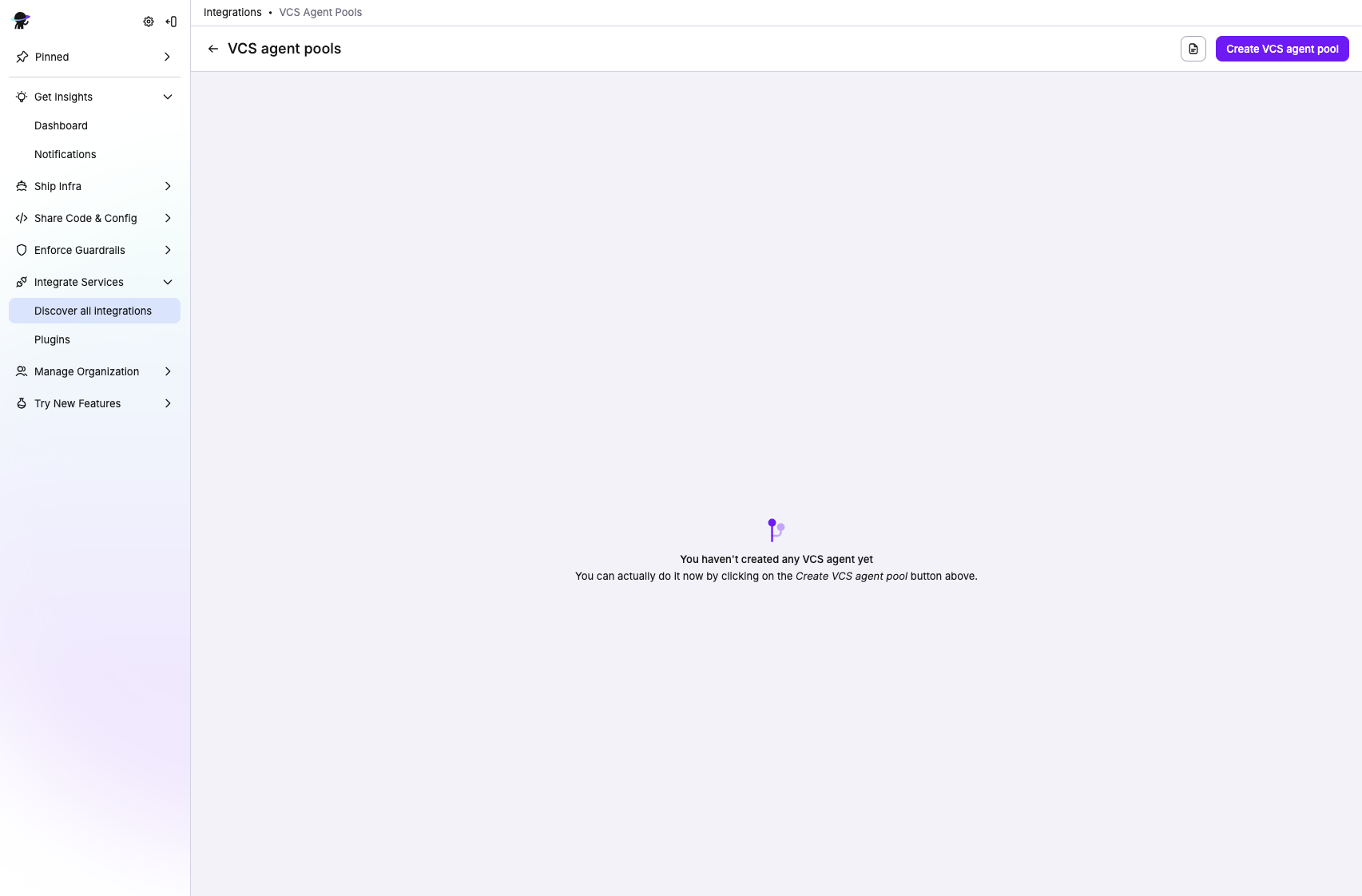

Navigate to VCS Agent Pools using the Spacelift navigation sidebar. Click Add VCS Agent Pool.

Give your VCS Agent Pool a name and description, and you're done! A configuration token will be downloaded.

Running the VCS Agent

Download the VCS Agent binaries

The latest version of the VCS Agent binaries are available at Spacelift's CDN: x86_64 (amd64 CPU) and aarch64 (arm64 CPU).

Run via Docker

The VCS Agent is also available as a multi-arch (amd64 and arm64) Docker image:

• public.ecr.aws/spacelift/vcs-agent:latest
• public.ecr.aws/spacelift/vcs-agent:<version>

The available versions are listed in the GitHub Releases page.

docker run -it --rm -e "SPACELIFT_VCS_AGENT_POOL_TOKEN=<VCS TOKEN>" \
  -e "SPACELIFT_VCS_AGENT_TARGET_BASE_ENDPOINT=http://169.254.0.10:7990" \
  -e "SPACELIFT_VCS_AGENT_VENDOR=bitbucket_datacenter" \
  public.ecr.aws/spacelift/vcs-agent

Run the VCS Agent inside a Kubernetes Cluster

We have a VCS Agent Helm Chart that you can use to install the VCS Agent on top of your Kubernetes Cluster. After creating a VCS Agent Pool in Spacelift and generating a token, you can add our Helm chart repo and update your local cache using:

helm repo add spacelift https://downloads.spacelift.io/helm
helm repo update

Assuming your token, VCS endpoint and vendor are stored in the SPACELIFT_VCS_AGENT_POOL_TOKEN, SPACELIFT_VCS_AGENT_TARGET_BASE_ENDPOINT and SPACELIFT_VCS_AGENT_VENDOR environment variables, you can install the chart using the following command:

helm upgrade vcs-agent spacelift/vcs-agent --install --set "credentials.token=$SPACELIFT_VCS_AGENT_POOL_TOKEN,credentials.endpoint=$SPACELIFT_VCS_AGENT_TARGET_BASE_ENDPOINT,credentials.vendor=$SPACELIFT_VCS_AGENT_VENDOR"

Configure and run the VCS Agent

A number of configuration variables is available to customize how your VCS Agent behaves. The ones marked as required are … well … required.

CLI Flag	Environment Variable	Status	Default Value	Description
--target-base-endpoint	SPACELIFT_VCS_AGENT_TARGET_BASE_ENDPOINT	Required		The internal endpoint of your VCS system, including the protocol, as well as port, if applicable. (e.g., http://169.254.0.10:7990)
--token	SPACELIFT_VCS_AGENT_POOL_TOKEN	Required		The token you’ve received from Spacelift during VCS Agent Pool creation
--vendor	SPACELIFT_VCS_AGENT_VENDOR	Required		The vendor of your VCS system. Currently available options are azure_devops, gitlab, bitbucket_datacenter and github_enterprise
--allowed-projects	SPACELIFT_VCS_AGENT_ALLOWED_PROJECTS	Optional	.*	Regexp matching allowed projects for API calls. Projects are in the form: 'group/repository'.
--bugsnag-api-key	SPACELIFT_VCS_AGENT_BUGSNAG_API_KEY	Optional		Override the Bugsnag API key used for error reporting.
--parallelism	SPACELIFT_VCS_AGENT_PARALLELISM	Optional	4	Number of streams to create. Each stream can handle one request simultaneously.
--debug-print-all	SPACELIFT_VCS_AGENT_DEBUG_PRINT_ALL	Optional	false	Makes vcs-agent print out all the requests and responses.
	HTTPS_PROXY	Optional		Hostname or IP address of the proxy server, including the protocol, as well as port, if applicable. (e.g., http://10.10.1.1:8888)
	NO_PROXY	Optional		Comma-separated list of host names that shouldn't go through any proxy is set in.

Congrats! Your VCS Agent should now connect to the Spacelift backend and start handling connections.

Within the VCS Agent Pools page, you will be able to see the number of active connections used by your pool.

Warning

Now whenever you need to specify an endpoint inside of Spacelift which should use your VCS Agent Pool, you should write it this way: private://my-vcs-agent-pool-name/possible/path

When trying to use this integration, i.e. by opening the Stack creation form, you'll get a detailed log of the requests:

Passing Metadata Tags

When the VCS Agent from a VCS Agent Pool is connecting to the gateway, you can send along some tags that will allow you to uniquely identify the process / machine for the purpose of debugging. Any environment variables using SPACELIFT_METADATA_ prefix will be passed on. As an example, if you're running Spacelift VCS Agents in EC2, you can do the following just before you execute the VCS Agent binary:

export SPACELIFT_METADATA_instance_id=$(ec2-metadata --instance-id | cut -d ' ' -f2)

Doing so will set your EC2 instance ID as instance_id tag in your VCS Agent connections.

Private Workers

VCS agents are only supported when using private worker pools. Because your source code is downloaded directly by Spacelift workers, you need to configure your workers to know how to reach your VCS instance. Information on how to do this is provided on the worker pools page.

Debug Information

Sometimes, it is helpful to display additional information to troubleshoot an issue. When that is needed, set the following environment variables:

export GODEBUG=http2debug=2
export GRPC_GO_LOG_SEVERITY_LEVEL=info
export GRPC_GO_LOG_VERBOSITY_LEVEL=99

You may want to tweak the values to increase or decrease verbosity.
